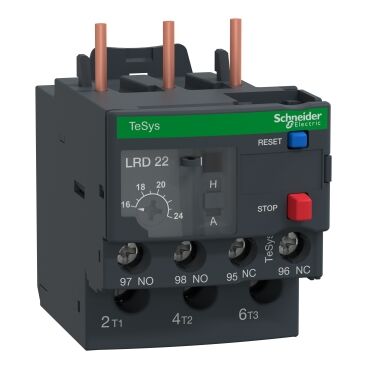

Schneider Electric TeSys Deca Thermal Overload Relay 16–24A Class 10A

The Schneider Electric LRD22 TeSys Deca Thermal Overload Relay is a reliable motor protection device designed to safeguard three-phase motors from overload, phase loss, and unbalanced current conditions. With an adjustable current range of 16A to 24A and Class 10A tripping characteristic, this overload relay provides accurate thermal protection for industrial motor control applications.

Designed for direct mounting with Schneider Electric TeSys D contactors, the LRD22 forms part of a complete motor starter solution, automatically disconnecting power when overload conditions occur to prevent motor damage and overheating.

Its compact and durable design features manual and automatic reset functions, auxiliary contacts for signalling, and adjustable thermal settings, making it ideal for use in automation systems, switchboards, and industrial machinery.

  • Adjustable overload protection range from 16A to 24A
  • Class 10A tripping characteristic for motor protection
  • Compatible with Schneider Electric TeSys D contactors
  • Protects against overload, phase loss, and current imbalance
  • Rated operational voltage up to 690V AC
  • Built-in auxiliary contacts (1NO + 1NC) for signalling
  • Manual and automatic reset selector with test function
  • Compact design for DIN rail or direct contactor mounting

Click here for Data Sheet



SKU LRD22
