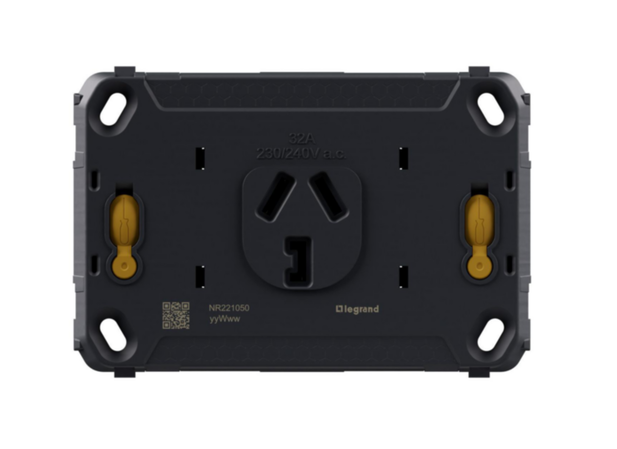

Legrand Inspyra 32A Horizontal Unswitched Single Power Point Grid

The Legrand Inspyra NR221050 is a 32A horizontal unswitched single power point grid designed for fixed equipment requiring continuous high-current supply. Its grid-only format provides the outlet base without integral switching, making it suitable where switching is controlled from another circuit point and a compatible Inspyra coverplate is used to complete the installation.

Brand Legrand
Series Inspyra
32A horizontal unswitched single power point grid
Grid-only format
32A rated single outlet
Unswitched configuration
Continuous power supply
Suitable for compatible high-current equipment
Suitable for fixed equipment
Suitable where switching is controlled elsewhere
Horizontal mounting
AS/NZS 3112 Type I
1 socket outlet
0 switchable socket outlets
32A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
108mm wide
74mm high
8mm deep
18mm built-in depth
Terminal capacity 1.5-6mm²
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR221050
Brand	Legrand
