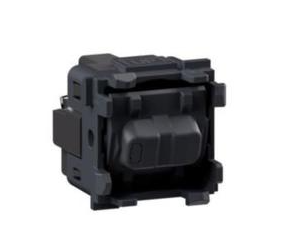

Legrand Inspyra 32A/20AX SPST Switch Mechanism

The Legrand Inspyra NR808000 is a 32A/20AX SPST switch mechanism designed for reliable high-capacity switching within the Inspyra modular platform. It supports higher-current electrical loads and fluorescent lighting circuits, with optional LED orientation lighting, screw terminals and compatibility with Inspyra grids and coverplates.

Series Inspyra
32A/20AX SPST switch mechanism
Single pole switching
Rocker/button operation
1 rocker
32A rated current
20AX fluorescent switching current
240V nominal voltage
AC operation
50-60Hz frequency
Designed for higher-current electrical loads
Suitable for lighting and power circuits with higher switching demands
Flush-mounted installation
Snap fastening
Screwed terminal connection
Terminal capacity 0.75-4mm²
Suitable for flexible cable
No mandatory neutral
Optional LED orientation lighting
Non-replaceable LED
Compatible with Inspyra grids
Compatible with Inspyra coverplates
Plastic construction
Thermoplastic material
Untreated matt finish
Grey finish
RAL colour reference similar to 7016
IP2X rated
IK04 impact resistance
24mm wide
24mm high
27mm deep
25mm built-in depth
Minimum installation box depth 25mm
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR808000
Brand	Legrand
