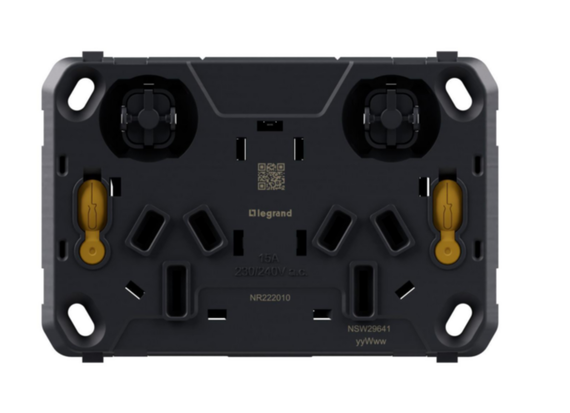

Legrand Inspyra 15A Horizontal Double Power Point Grid

The Legrand Inspyra NR222010 is a 15A horizontal double power point grid designed as a configurable higher-current outlet base within the Inspyra system. It supports connection of two compatible higher-current devices once completed with a suitable Inspyra coverplate, while angled screw terminals, enclosed terminals and a captive screw design help support secure and efficient installation.

Brand Legrand
Series Inspyra
15A horizontal double power point grid
Grid-only format
Double outlet configuration
15A rated outlets
Suitable for two compatible higher-current devices
Coverplate required to complete installation
Horizontal mounting
AS/NZS 3112 Type I
2 socket outlets
2 switchable socket outlets
15A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Captive screw design
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
108mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR222010
Brand	Legrand
