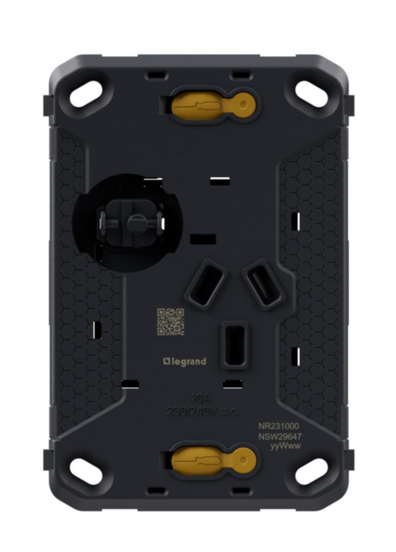

Legrand Inspyra 10A Vertical Single Power Point Grid

The Legrand Inspyra NR231000 is a 10A vertical single power point grid designed as a configurable outlet base within the Inspyra system. It provides a dedicated outlet position in a vertical format, making it suitable where wall layout or space constraints favour vertical orientation, while the final coverplate is selected separately to complete the installation.

Brand Legrand
Series Inspyra
10A vertical single power point grid
Grid-only format
Single outlet configuration
Vertical mounting
Coverplate required to complete installation
Suitable for vertical wall layouts
Suitable where space constraints favour vertical orientation
AS/NZS 3112 Type I
1 socket outlet
1 switchable socket outlet
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Captive screw design
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
74mm wide
108mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR231000
Brand	Legrand
