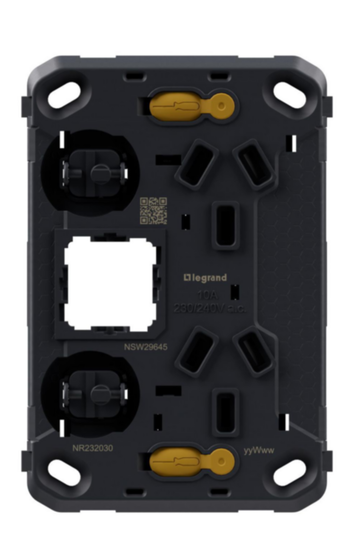

Legrand Inspyra 10A Vertical Double Power Point Grid with Extra Function Hole

The Legrand Inspyra NR232030 is a 10A vertical double power point grid with an extra function hole, designed as a configurable outlet base within the Inspyra system. The additional function provision allows compatible devices such as USB charging or isolated switching modules to be integrated alongside the double outlet configuration, while the final coverplate is selected separately to complete the installation.

Brand Legrand
Series Inspyra
10A vertical double power point grid
Grid-only format
Double outlet configuration
Extra function hole
Supports compatible USB charging modules
Supports compatible isolated switching modules
Coverplate required to complete installation
Vertical mounting
AS/NZS 3112 Type I
2 socket outlets
2 switchable socket outlets
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
74mm wide
108mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR232030
