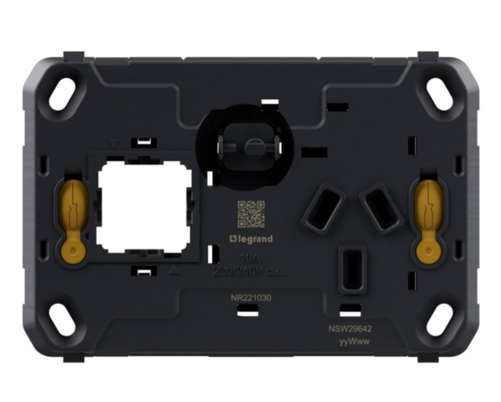

Legrand Inspyra 10A Horizontal Single Power Point Grid with Extra Function Hole

The Legrand Inspyra NR221030 is a 10A horizontal single power point grid with an extra function hole, designed as a configurable outlet base within the Inspyra system. The additional function provision allows compatible devices such as USB charging or isolated switching modules to be integrated alongside the power outlet, while the final coverplate is selected separately to complete the installation.

Brand Legrand
Series Inspyra
10A horizontal single power point grid
Grid-only format
Single outlet configuration
Extra function hole
Supports compatible USB charging modules
Supports compatible isolated switching modules
Coverplate required to complete installation
Horizontal mounting
AS/NZS 3112 Type I
1 socket outlet
1 switchable socket outlet
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
108mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR221030
Brand	Legrand
