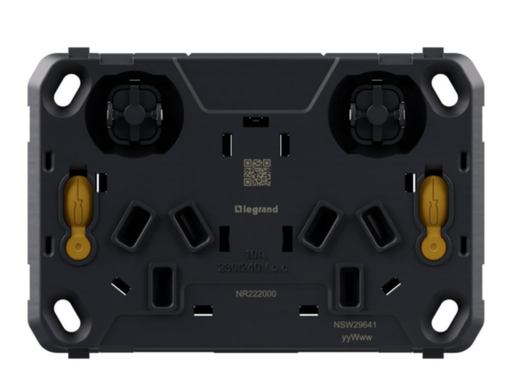

Legrand Inspyra 10A Double Power Point Grid

The Legrand Inspyra NR222000 is a 10A double power point grid designed as a configurable outlet base within the Inspyra system. It includes the integrated power and switch mechanisms for a double outlet configuration, while the final coverplate is selected separately to complete the installation and match the desired interior finish.

Brand Legrand
Series Inspyra
10A double power point grid
Grid-only format
Double outlet configuration
Integrated power and switch mechanisms
Coverplate required to complete installation
Horizontal mounting
AS/NZS 3112 Type I
2 socket outlets
2 switchable socket outlets
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Captive screw design
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
108mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR222000
Brand	Legrand
