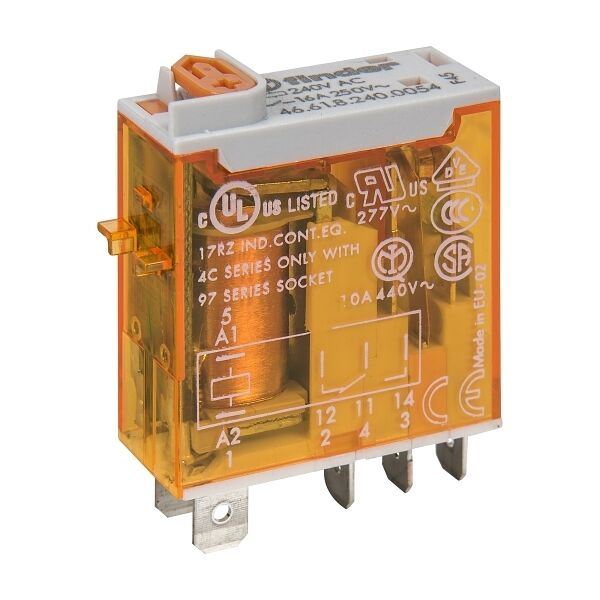

Finder 46 Series Miniature Relay 16A 1CO 240VAC Coil with LED Test Button & Mechanical Indicator

The Finder 46610054240VAC is a 46 Series miniature general purpose relay rated at 16A with 1 change-over (1CO) contact and a 240VAC coil. Designed for panel mount and power relay applications, this model includes an integrated LED indicator, mechanical status indicator, and latching test button for easy commissioning and troubleshooting.

With a nominal current of 16A and switching capacity up to 4000VA at AC-1, this relay is suitable for a wide range of industrial and commercial control applications. It supports AC and DC switching duties and offers reliable performance with an electrical life of 100,000 cycles and mechanical life of 10 million cycles.

Part of the Finder Panel Mount and Power Relay range, the 46 Series features a modular design allowing the use of surge suppressors, timers, markers and plug-in bases for flexible installation.

  • 16A miniature general purpose relay
  • 1 change-over (1CO) contact
  • 240VAC coil (50/60Hz)
  • Integrated LED indication
  • Mechanical position indicator
  • Latching push-to-test button
  • Plug-in connection type
  • Silver nickel contacts
  • Suitable for plug-in socket mounting

Click here for Data Sheet



SKU 46610054240VAC
Brand NHP
