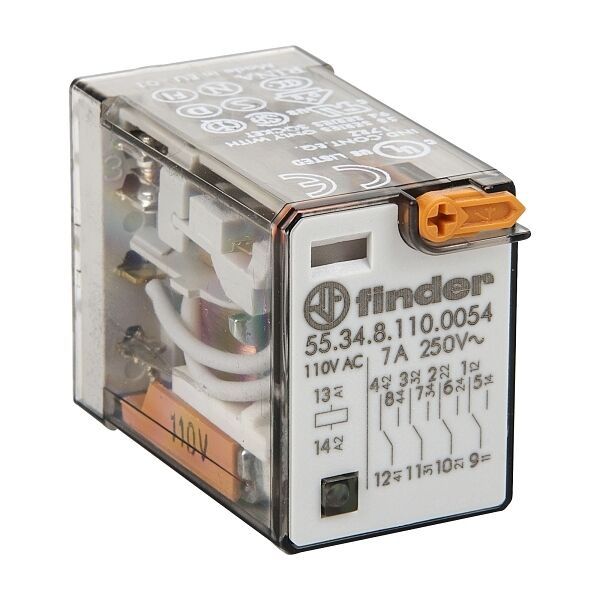

Finder 55 Series Miniature Relay 7A 4CO 110VAC Coil with LED Test Button & Mechanical Indicator

The Finder 55340054110VAC is a 55 Series miniature general purpose relay rated at 7A with four change-over (4CO) contacts and a 110VAC coil. Designed for industrial control and panel applications, this model includes an integrated LED indicator, mechanical position indicator, and latching push-to-test button for easy commissioning and diagnostics.

With a nominal current of 7A and rated switching power of 1750VA at AC-1, this relay provides reliable performance for a wide range of automation, machinery, and power control circuits. It features plug-in connection for use with compatible 90 Series bases and offers long mechanical life up to 20 million cycles.

Part of the Finder Panel Mount and Power Relay range, the 55 Series offers flexible configuration options including surge suppressors, coil indication modules, timers, marker slots, and jumper links.

• 7A miniature general purpose relay
• 4 change-over (4CO) contacts
• 110VAC coil (50/60Hz)
• Integrated LED indication
• Mechanical position indicator
• Latching push-to-test button
• Plug-in connection type
• Silver nickel contacts
• Suitable for plug-in socket mounting

Click here for Data Sheet
