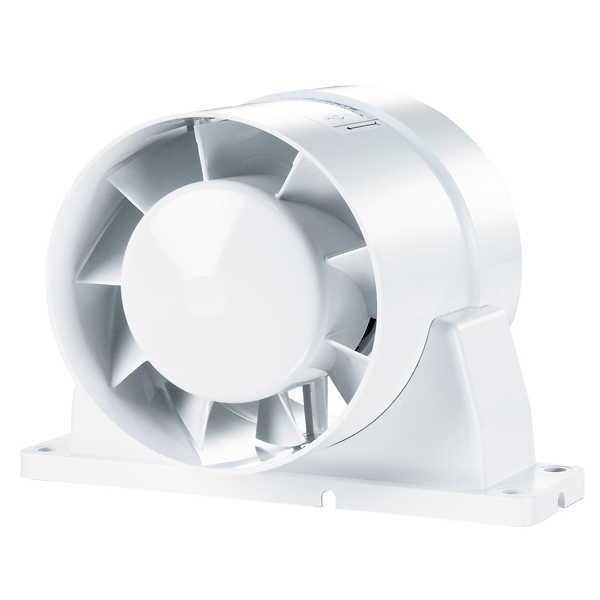

Fanco VKO 125 Compact Axial Inline Fan 125mm

The Fanco EXVUVKO2 VKO 125 is a compact axial inline fan designed for simple and effective inline ventilation in residential and light commercial applications. Part of the VKO Series, this model offers a practical low noise solution for ducted airflow where a compact footprint is important. With a European motor and IPX4 protection, it is well suited to indoor ventilation systems requiring dependable everyday performance. The EXVUVKO2 operates on 220 to 240V and delivers 243m³/hr airflow, 67.55l/s and 143.12CFM. It draws 0.105A, uses 24W of power and produces a noise level of 39dB(A). The specification sheet notes a 125mm duct size, a maximum transferred air temperature of 40°C, and suitability for indoor applications with ambient temperatures from +1°C to +40°C and relative humidity up to 80%. It also states that the single speed motor cannot be used with a speed control.

  • 125mm compact axial inline fan
  • Compact inline ventilation solution
  • Suitable for residential and light commercial use
  • European motor
  • 220 to 240V operation
  • 0.105A current draw
  • 24W power consumption
  • Airflow 243m³/hr
  • Airflow 67.55l/s
  • Airflow 143.12CFM
  • Noise level 39dB(A)
  • 125mm duct size
  • IPX4 rated
  • Single speed motor
  • Cannot be used with speed control
  • Suitable for indoor applications
  • Maximum transferred air temperature 40°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 125mm
  • Dimensions D1 129mm
  • Dimensions L 93mm
  • Dimensions L1 31mm
  • Dimensions H 139mm
  • Dimensions B 185mm
  • Dimensions B1 169mm
  • Dimensions L2 45mm
  • Dimensions L3 29mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUVKO2
Brand Fanco
