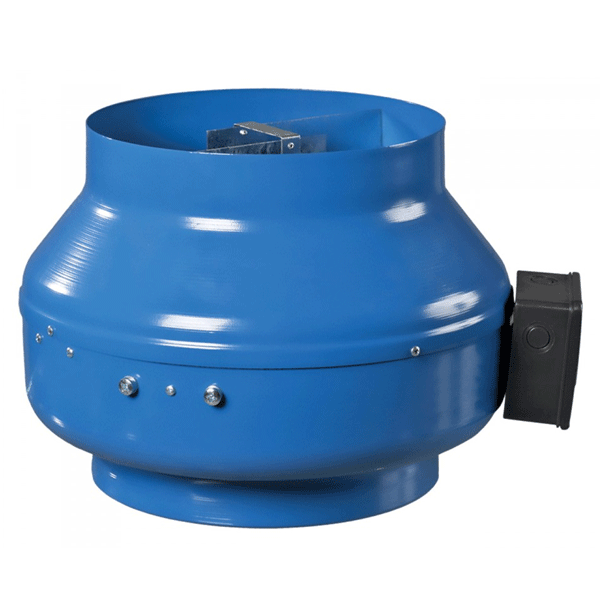

Fanco VKM 125 Metal Centrifugal Inline Fan 125mm

The Fanco EXVUV125 VKM 125 is an all metal centrifugal inline fan designed to deliver exceptional performance when ducted over long distances. Part of the VKM Series, this inline fan is ideal for residential and commercial ventilation applications where stronger pressure performance is needed than a standard axial fan can provide. With its European made construction and Blauberg Motoren motor, it offers a durable and dependable solution for demanding ducted exhaust setups. The EXVUV125 operates on 220 to 240V and delivers 355m³/hr airflow, 98.69l/s and 209.09CFM. It draws 0.33A, uses 75W of power and produces a noise level of 47dB(A). The specification sheet also notes IPX4 protection, suitability for indoor use, and operating conditions of +1°C to +40°C with relative humidity up to 80%. It includes mounting brackets for secure installation and can be used with the ESEEAS speed controller.

  • 125mm metal centrifugal inline fan
  • All metal construction
  • Designed for long duct runs
  • Suitable for residential and commercial ventilation
  • Blauberg Motoren motor
  • European made
  • 220 to 240V operation
  • 0.33A current draw
  • 75W power consumption
  • Airflow 355m³/hr
  • Airflow 98.69l/s
  • Airflow 209.09CFM
  • Noise level 47dB(A)
  • 125mm duct size
  • IPX4 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Includes mounting brackets
  • Suitable for indoor applications
  • Maximum transferred air temperature 45°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 123mm
  • Dimensions D1 254mm
  • Dimensions B 298mm
  • Dimensions B1 258mm
  • Dimensions L 205mm
  • Dimensions L1 20mm
  • Dimensions L2 25mm
  • Dimensions L3 30mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUV125
Brand Fanco
