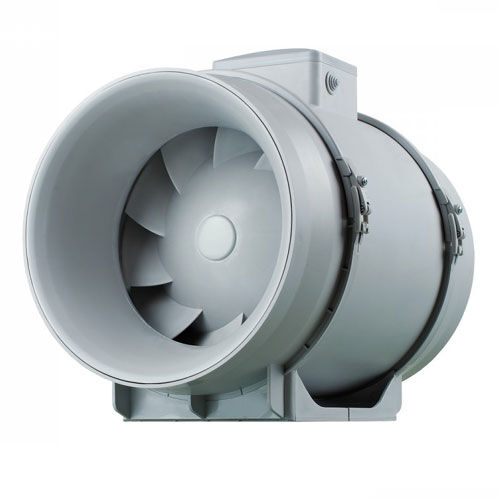

Fanco TT Mixflow 315 Inline Exhaust Fan 315mm

The Fanco EXVUTTP315B TT Mixflow 315 is a high capacity inline exhaust fan designed for both domestic and commercial ventilation applications. Part of the TT Mixflow Series, this ABS mixflow inline fan combines strong airflow with dependable performance, making it a practical solution for larger ducted ventilation systems where reliable extraction is essential. Built with a European motor and durable plastic casing, it is designed for long term everyday use. The uploaded specification sheet lists the 315 model as EXVUTTP315 rather than EXVUTTP315B, so the description below is based on the 315 model data shown in the sheet. That model features low and high speed operation with airflow capacities of 1570m³/hr and 2050m³/hr. It runs on 230V, draws 1.0A to 1.42A and uses 230W to 320W depending on the selected speed, while producing a noise level of 49dB(A) to 58dB(A). The sheet also notes IPX4 protection, indoor suitability, a maximum transferred air temperature of 60°C, and a recommendation to use 350mm diameter flexible ducting.

  • 315mm inline exhaust fan
  • Based on 315 model data in supplied sheet
  • Suitable for domestic and commercial applications
  • ABS mixflow inline fan
  • Low and high speed settings
  • Airflow 1570m³/hr low speed
  • Airflow 2050m³/hr high speed
  • Airflow 436.56l/s low speed
  • Airflow 569.9l/s high speed
  • Airflow 924.73CFM low speed
  • Airflow 1207.5CFM high speed
  • Noise level 49dB(A) low speed
  • Noise level 58dB(A) high speed
  • 230V operation
  • 1.0A / 1.42A current draw
  • 230W / 320W power consumption
  • 315mm duct size
  • Recommended for use with 350mm diameter flexible ducting
  • IPX4 rated
  • European motor
  • Durable plastic casing
  • Designed for indoor applications
  • Maximum transferred air temperature 60°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Removable central motor design
  • Dimensions D 310mm B 362mm L 445mm H 408mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUTTP315B
Brand Fanco
