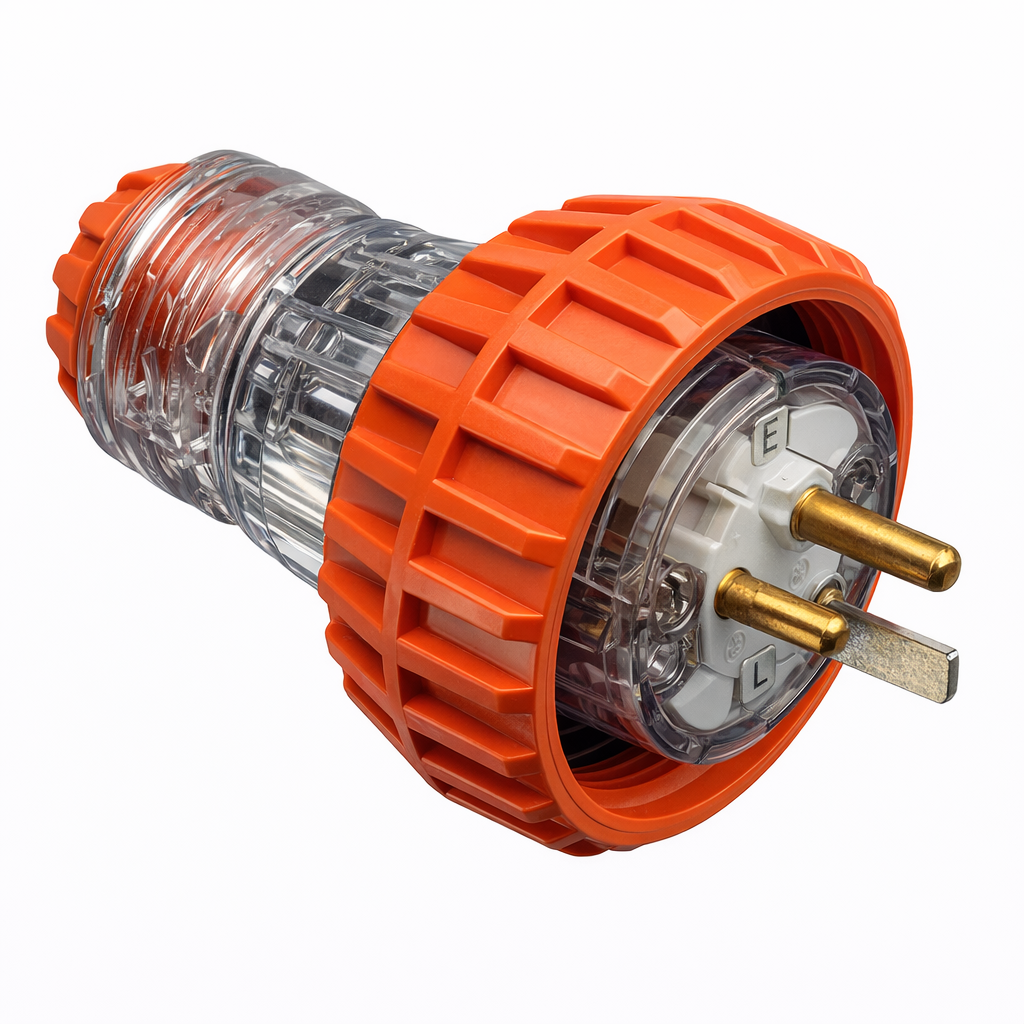

Clipsal 56 Series Straight Plug 3 Pin 10A 110V IP66 Orange

The Clipsal 56P3/110-EO 56 Series Straight Plug is a durable industrial plug designed for reliable 110V power supply applications in demanding environments. Built as part of the trusted Clipsal 56 Series, this 3 pin straight plug features a robust polycarbonate housing and IP66 protection, making it ideal for harsh Australian worksites where dust and water resistance are essential. Its bright orange finish also allows for easy voltage identification on site. Rated at 10A with a 1P + N + E configuration, the 56P3/110-EO is designed to suit industrial low voltage applications and conforms to AS/NZS 3112. It features brass pins, screw terminal connections, M20 cable gland entry and a straight plug format for practical installation. Compact and reliable, this industrial plug measures 67mm high, 67mm wide and 112.5mm deep, offering dependable performance in operating temperatures from -25°C to 75°C.

  • 3 pin plug
  • 1P + N + E configuration
  • 10A rated current
  • 110V AC 50Hz rating
  • IP66 protection rating
  • Orange finish RAL 2004
  • Industrial low voltage plug
  • Durable polycarbonate housing
  • Straight plug design
  • Screw terminal connections
  • Suitable for 0.75mm² to 1mm² cable
  • Wire stripping lengths 35mm and 10mm
  • Brass pins
  • Cable gland entry
  • M20 thread type
  • Conforms to AS/NZS 3112
  • Suitable for Australian applications

Click here for Data Sheet

SKU 56P3110-GY
Brand Clipsal
