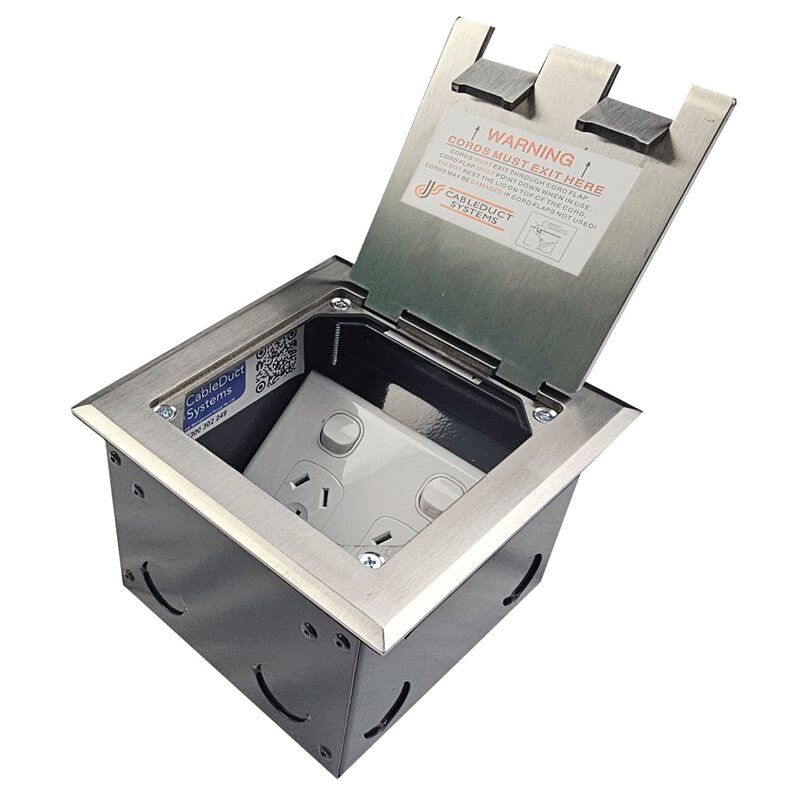

Cable Duct Systems Floor Box 1 x Double GPO Outlet + 3 Data Provisions

  • Hinged Lid 145 x 145mm, screw fixes to Steel Box Body.
  • 2 x Cord Exit Flaps - allow cords out with the main cover closed
  • Temporary Cover - secure to the body during the concrete pour to prevent ingress of slurry.
  • Steel Box Body - 126 x 135 x 100mm nom. deep. has 10 x 25mm conduit knockouts (2 on each side and two on the base)
  • Outlet Bracket to Suit 1 x Standard Series Style Power/ Data /AV Outlet
  • 1 x 3-Gang Data Outlet Clip (supplied)
  • Block-out in concrete slab 146 x 155 x 110mm nom. Cut-out in raised/ timber floor
  • 128 x 137mm nom. Floating Floor brackets are available upon request.

Click here for Data Sheet

SKU FFOB-148
Brand Cable Duct Systems
