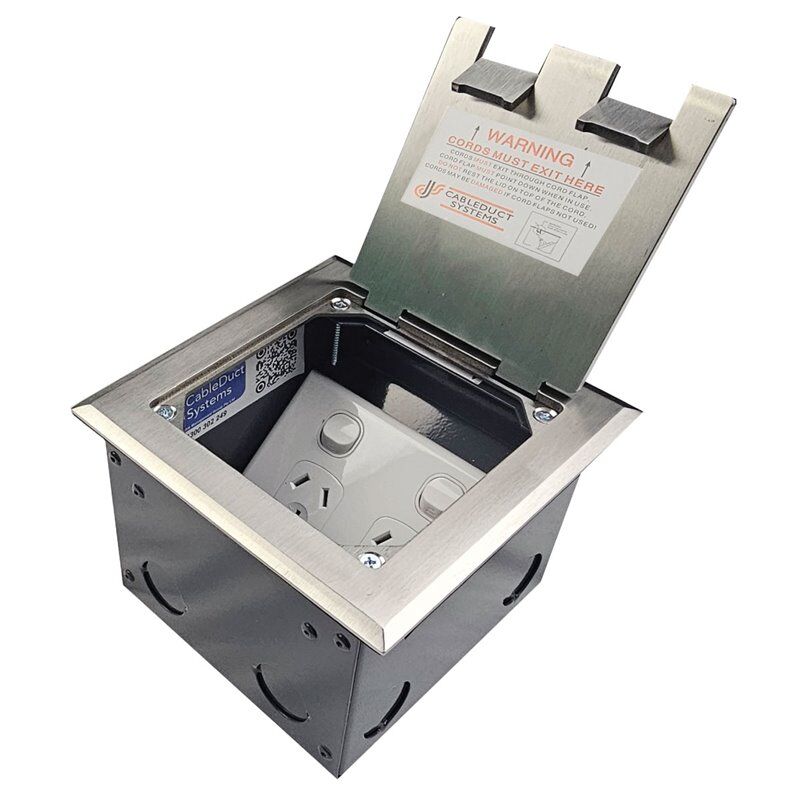

Cable Duct Systems Floor Box 1 Standard GPO

  • Hinged Lid 145 x 145mm, screw to Steel Box Body.
  • 2 x Cord Exit Flaps -allow cords out with the main cover closed
  • Temporary Cover – secure to the body during the concrete pour to prevent ingress of slurry.
  • Steel Box Body - 126 x 135 x 100mm nom. deep.
  • has 5 x 25mm conduit knockouts - 4 on the side of the box and one on the base.
  • Outlet Bracket to Suit 1 x Standard Series Style Power/ Data /AV Outlet
  • Block-out in concrete slab 146 x 155 x 110mm nom.
  • Cut-out in raised 128 x 137mm nom.
  • Floating Floor brackets are available upon request.

Click here for Data Sheet



SKU FFOB-145
Brand Cable Duct Systems
