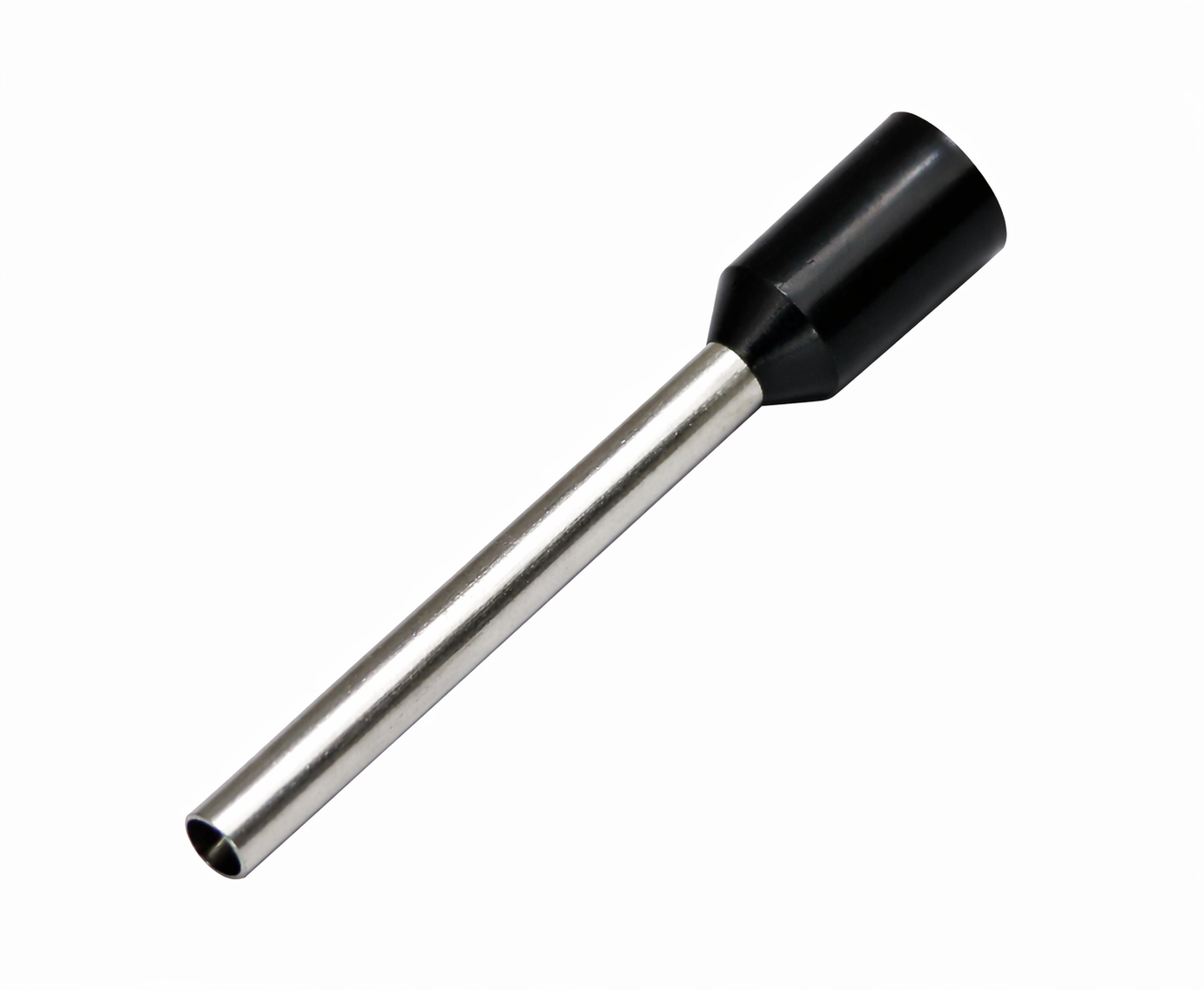

Cabac Bootlace Terminal 1.5mm² Black 18mm Pin

The CABAC BLP150-18 is a high quality bootlace terminal designed to provide a neat, secure and reliable termination for stranded conductors. Suited to 1.5mm² cable, this bootlace terminal contains all strands within a thin walled copper sleeve, helping prevent stray strands and reducing the risk of damage caused by terminal screws. It is an ideal solution for switchboards, control panels and other electrical applications where a clean and dependable conductor termination is required. Manufactured from copper and nylon and finished in black, the BLP150-18 is halogen free and suitable for use with copper cables only. It features a 24mm overall length with an 18mm pin length and is designed for use with CABAC HNKE range crimp tools for best results. With a temperature rating from -55°C to +105°C, this bootlace terminal offers dependable performance across a wide range of installation environments.

  • Black colour
  • 24mm overall length
  • 18mm pin length
  • B dimension 2mm
  • D dimension 4.6mm
  • Thin walled copper sleeve contains conductor strands securely
  • Helps prevent stray strands and protects against terminal screw damage
  • Copper and nylon construction
  • Halogen free components
  • Suitable for copper cables only
  • Plating thickness 0.003mm
  • Temperature rating -55°C to +105°C
  • Recommended for use with CABAC HNKE range crimp tools
  • Pack quantity 100

Click here for Data Sheet

SKU BLP150-18
Brand Cabac
