CABAC Pre-Insulated End Connector 2.5

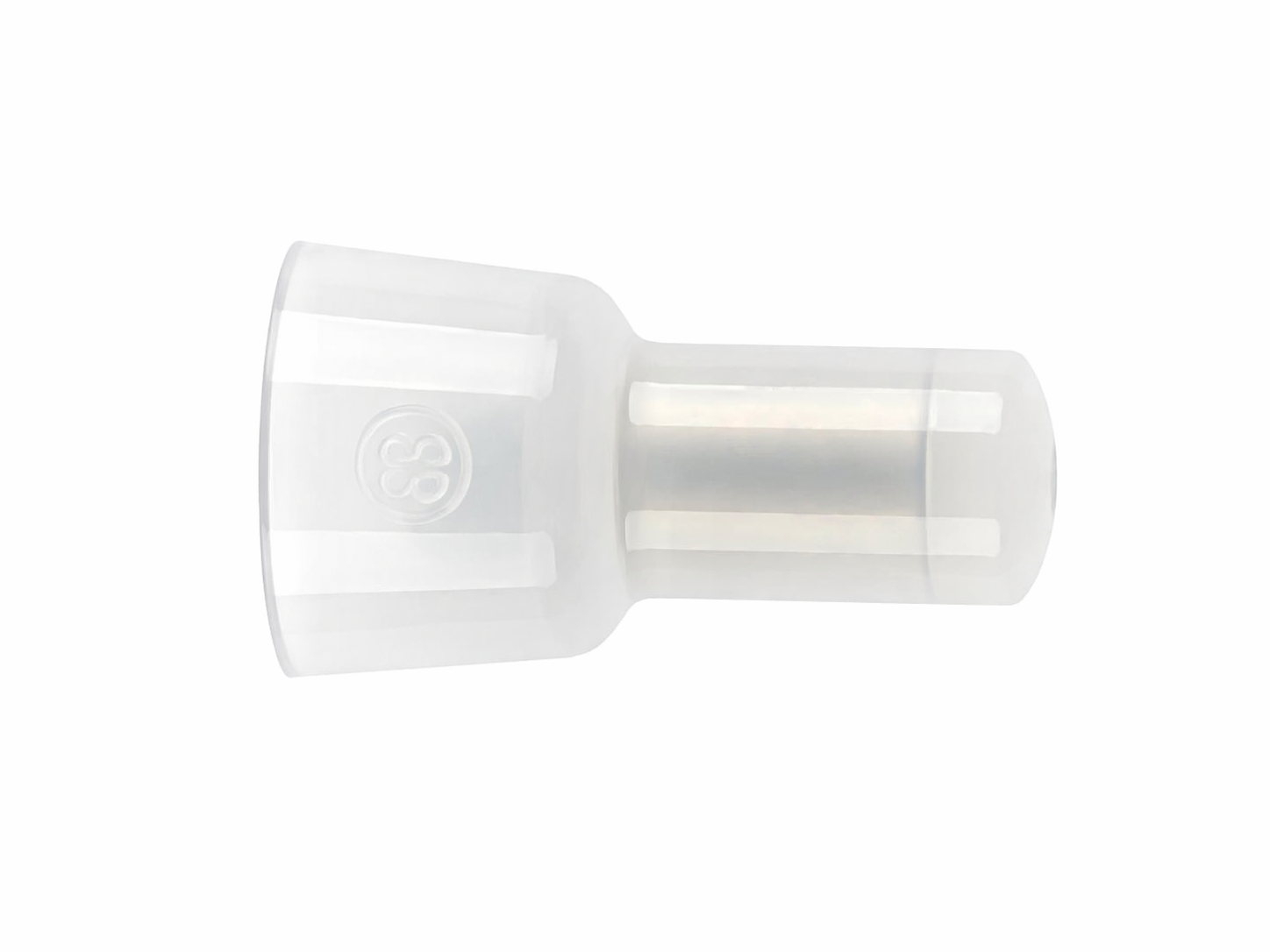

CABAC Pre-Insulated End Connector 2.5–6.0mm²

The CABAC EC5.5 is a pre-insulated end connector designed for terminating copper conductors in the 2.5–6.0mm² range. It forms part of CABAC’s pre-insulated terminal range, which is rated up to 300V AC/DC and designed for reliable crimped electrical connections.

Brand CABAC
Product type pre-insulated end connector
Terminal range EC
Conductor range 2.5–6.0mm²
Pack quantity 25
Copper conductive material
Copper purity 99.9%
Fully annealed conductive material
Tin electroplated
Tin content 99.9%
Plating thickness 2.5 microns
Insulation material PVC
Breakdown voltage minimum 1.5kV
Insulation resistance above 100MΩ
Working voltage up to 300V AC/DC
Working temperature -40°C to +105°C
Nominal current rating 48A
Recommended strip length 6–7mm
Conforms to AS 4437
Conforms to AS 3169
Suitable for crimp termination
Recommended for use with a CABAC crimper or suitable quality crimping tool

Click here for Data Sheet

SKU	EC5.5
Brand	Cabac
