CABAC Pre-Insulated End Connector 0.5

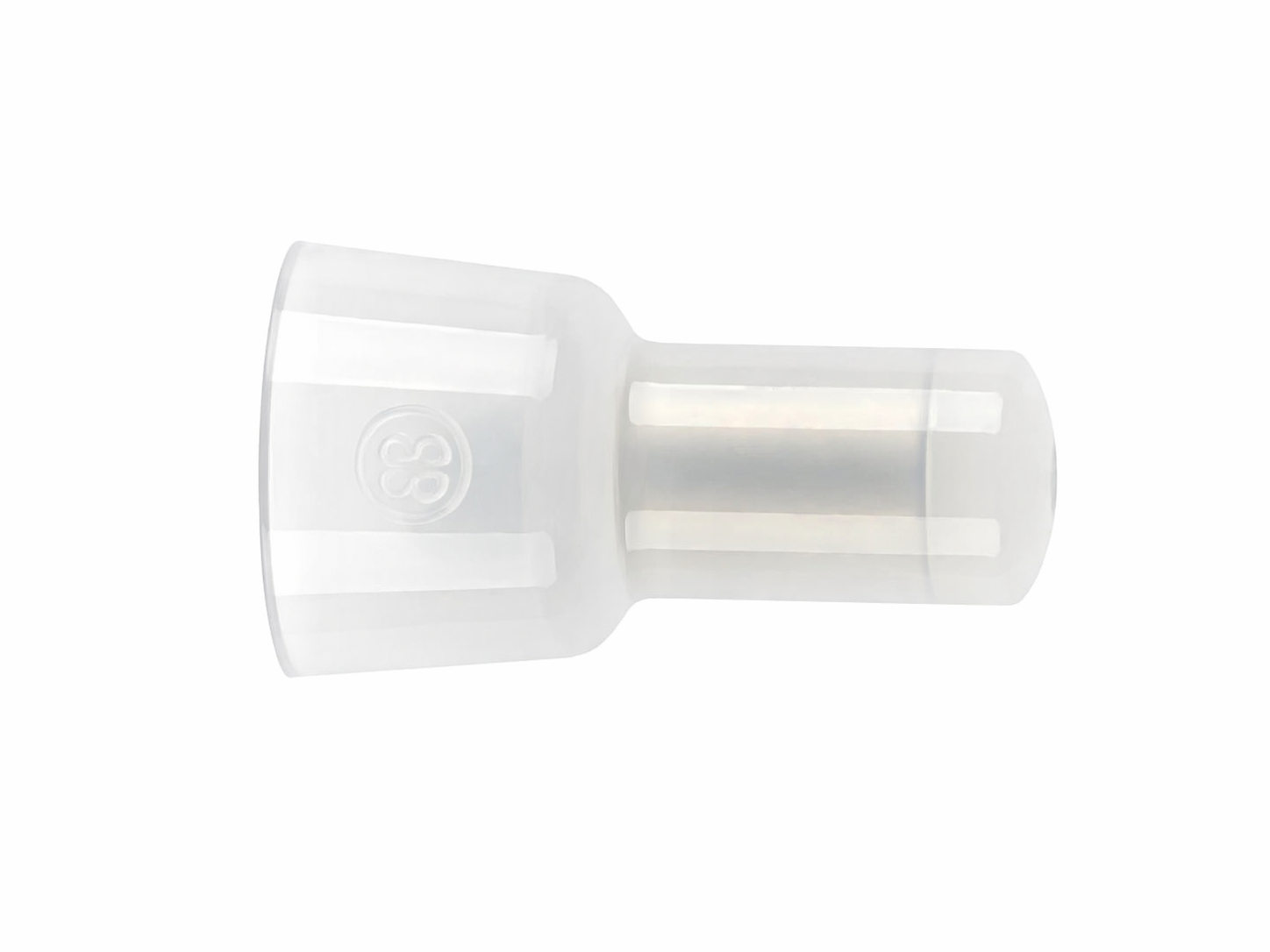

CABAC Pre-Insulated End Connector 0.5–1.6mm²

The CABAC EC1.25 is a pre-insulated end connector designed for terminating copper conductors in the 0.5–1.6mm² range. It forms part of CABAC’s pre-insulated terminal range, which is rated up to 300V AC/DC and designed for reliable crimped electrical connections.

Brand CABAC
Product type pre-insulated end connector
Terminal range EC
Conductor range 0.5–1.6mm²
Pack quantity 50
Copper conductive material
Copper purity 99.9%
Fully annealed conductive material
Tin electroplated
Tin content 99.9%
Plating thickness 2.5 microns
Insulation material PVC
Breakdown voltage minimum 1.5kV
Insulation resistance above 100MΩ
Working voltage up to 300V AC/DC
Working temperature -40°C to +105°C
Conforms to AS 4437
Conforms to AS 3169
Suitable for crimp termination
Recommended for use with a CABAC crimper or suitable quality crimping tool

Click here for Data Sheet

SKU	EC1.25
Brand	Cabac
