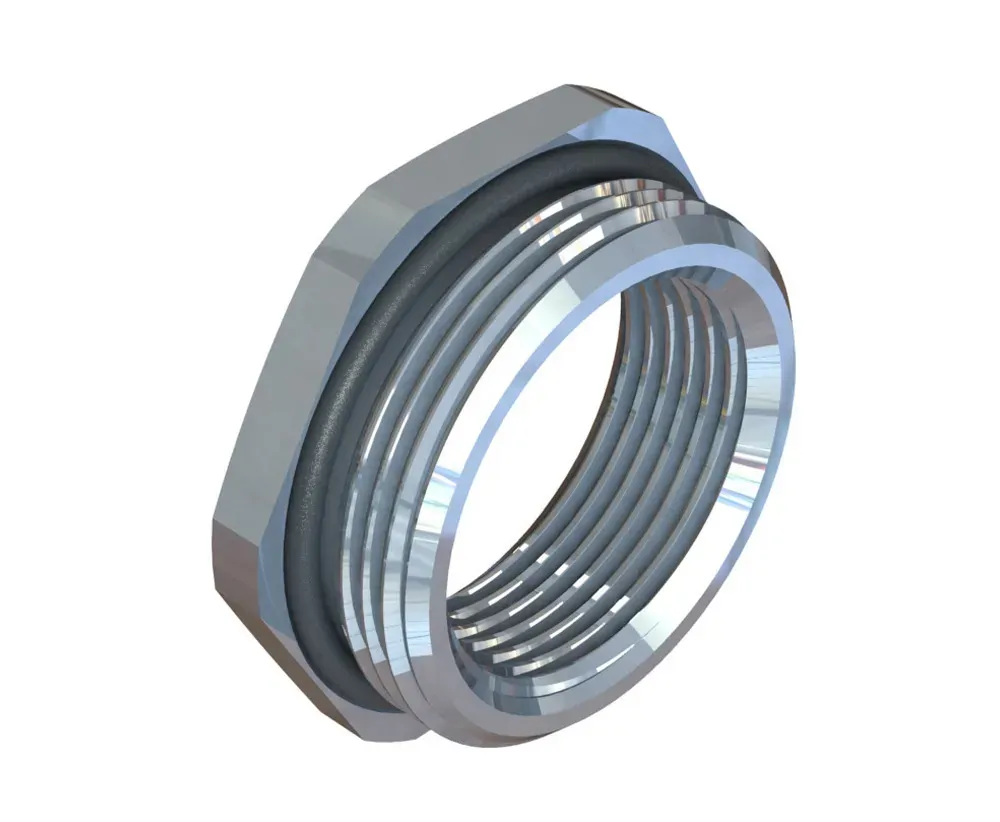

CABAC Nickel-Plated Brass Reducer M25 Male to M20 Female

The CABAC R/M25-M20/NPB is a nickel-plated brass reducer designed to adapt an M25 male thread to an M20 female thread in cable gland, conduit and enclosure installations. It provides a secure, corrosion-resistant connection and is supplied with an NBR O-ring for reliable sealing in industrial, commercial, indoor and outdoor applications.

Brand CABAC
Product type metal thread reducer
Material brass
Finish nickel plated
Plating thickness 2–3µm
O-ring material NBR
Outer thread M25 × 1.5
Inner thread M20 × 1.5
Thread length 7.5mm
Across flats 27.0mm
Overall length 10.5mm
Spanner size 27mm
Thread type ISO metric
Operating temperature -40°C to +100°C
Short-term temperature up to +120°C
Suitable for cable gland installations
Suitable for conduit fittings
Suitable for electrical panels and junction boxes
Suitable for industrial equipment
Suitable for indoor and outdoor applications
Sell unit bag
Quantity per bag 3

Click here for Data Sheet

SKU	RM25M20NPB
Brand	Cabac
