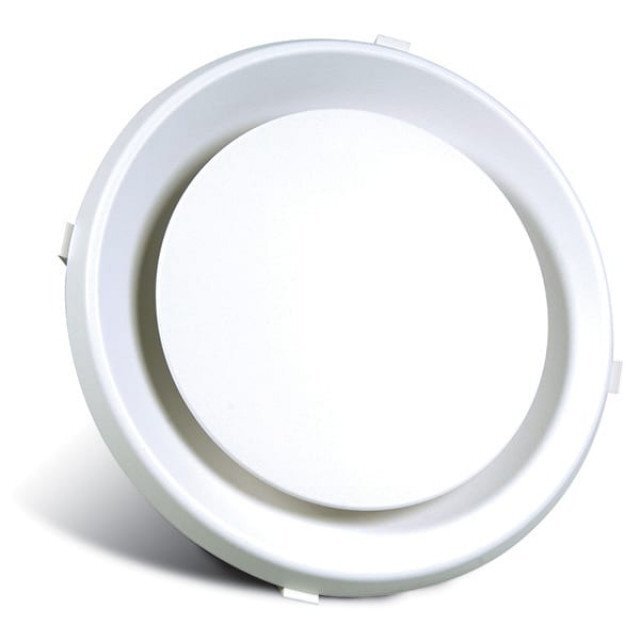

Allvent Euro 250MM Cone Grille Ceiling Diffuser

The Allvent Euro 10WRC ALV225 is a 250mm cone grille ceiling diffuser commonly used for air intake and extraction applications. Its design draws air from surrounding surfaces rather than directly below, making it well suited to heat, smoke and vapour extraction or transfer. Airflow can be adjusted by screwing the inverted centre cone in or out, providing simple airflow control to suit the ventilation requirement.

  • Euro WRC cone grille
  • 250mm duct size
  • 355mm cutout size
  • 400mm face diameter
  • 247mm neck diameter
  • 100mm depth
  • 15mm dimension D
  • Designed for ceiling installation
  • Commonly used for air intake
  • Suitable for heat extraction
  • Suitable for smoke extraction
  • Suitable for vapour extraction and transfer
  • Draws air from surrounding surfaces rather than directly below
  • Adjustable airflow via screw-in inverted centre cone
  • Suitable for residential ventilation applications
  • Suitable for commercial ventilation applications

Click here for Data Sheet

SKU ALV225
