Allvent 150MM Egg Crate Grille ERG

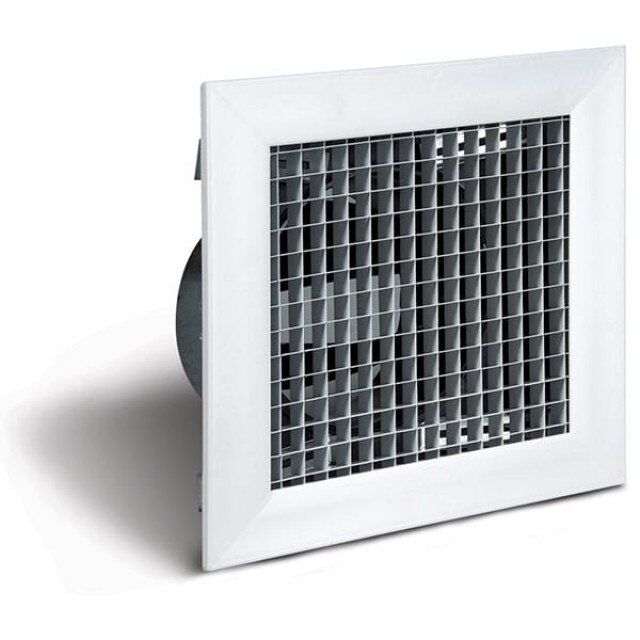

The Allvent ALV220 is a square-faced egg crate grille designed primarily for air intake applications in residential, commercial and light industrial ventilation systems. Its metal construction and open grid design provide a clean, practical appearance while allowing air to move freely through the grille. It is well suited to ceiling, wall and ducted ventilation installations in offices, workshops, plant rooms, storage areas, utility spaces and general air transfer systems where a durable 150mm intake grille is required.

  • Egg Crate Grille ERG
  • Square-faced grille design
  • Commonly used for air intake
  • Metal construction
  • Suitable for ceiling or wall ventilation applications
  • Suitable for residential, commercial and light industrial ventilation systems
  • Duct size 150mm
  • Overall face size 245mm
  • Neck diameter 145mm
  • Internal opening dimension 178mm
  • Depth 130mm
  • Face thickness 5mm

Click here for Data Sheet

SKU ALV220
Brand Allvent
