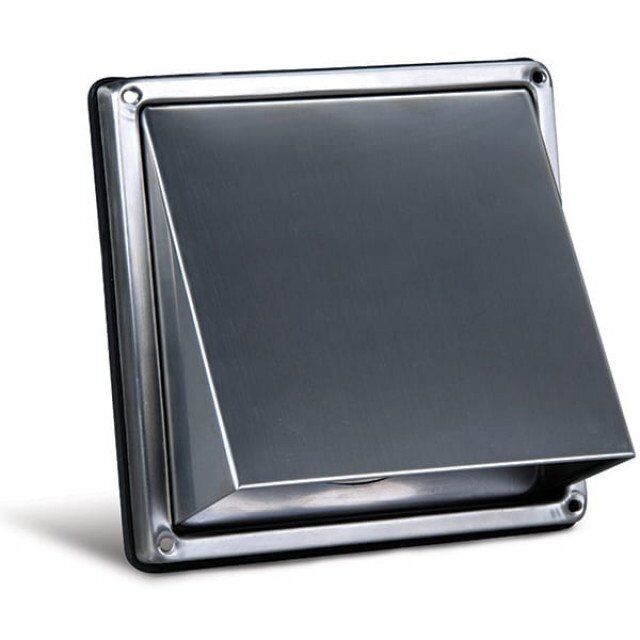

Allvent HG125 125MM Stainless Steel Hood Grille

The Allvent HG125 ALV209 is a 125mm stainless steel hood grille designed for external wall ventilation where weather protection, durability and a clean architectural finish are important. Its hooded form helps shield the duct opening from harsh weather and heavy rainfall, while the integrated back-draft damper helps reduce unwanted reverse airflow when the ventilation system is not operating. The damper requires a minimum 10Pa pressure to open, and when combined with suitable ember-proof mesh the grille complies with BAL40 requirements, making it a practical choice for bathrooms, laundries, kitchens, utility rooms and other residential or light commercial exhaust applications in exposed or bushfire-prone areas.

  • Stainless steel construction
  • External wall hood grille
  • Integrated back-draft damper
  • Damper opening pressure minimum 10Pa
  • Designed to reduce unwanted reverse airflow
  • Suitable for harsh weather areas
  • Suitable for regions with heavy rainfall
  • Suitable for exterior exhaust ventilation
  • Suitable for bathrooms
  • Suitable for laundries
  • Suitable for kitchens
  • Suitable for utility areas
  • Suitable for residential and light commercial applications
  • BAL40 compliant when combined with ember-proof mesh
  • Dimension A 180mm
  • Dimension B 180mm
  • Dimension C 120mm
  • Dimension D 91mm
  • Dimension E 50mm

Click here for Data Sheet

SKU ALV209
Brand Allvent
