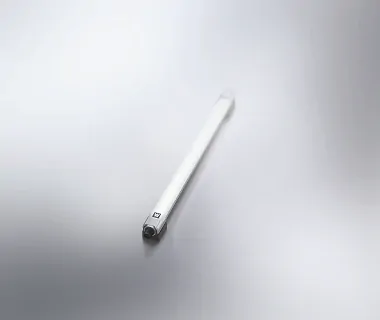

Redbank Linura Edge Luminaires 2W 1035mm Long 2205 Lumen 22-26VDC

Waldmann Linura.edge delivers powerful, homogeneous white light to monitor processes without specific spectral requirements, for example in assembly systems. Its narrow profile and a tilt radius of +/-60°, makes Linura.edge ideal for enclosures, and the slim design allows it to blend in seamlessly wherever it is used. Also, the M12 connection also makes it extremely simple to connect and operate. Slim design, less space required. It has been possible to compress the dimensions of the electronics and design (Linura is available with diameters of 25 mm and 35 mm), the luminaire can be installed in confined spaces or in aluminium system and switch cabinet profiles. Powerful and homogeneous light, makes better performance. With the latest LED technology and a lens to distribute light to optimum effect in a highly efficient manner while also improving the price-performance ratio. You can achieve the same level of lighting as before, but with smaller or fewer luminaires.

  • Maintenance-free LED technology
  • 5000K Colour temp.
  • 90° Beam angle
  • Glare-free technology with direct beam via a diffuse lens
  • basic body made of aluminium, lens made of PMMA, side parts made of glass-fibre-reinforced PA
  • Degree of protection / Protection class: IP54 / III
  • M12 plug connector (aligned), A-coded
  • Input: 22 – 26 VDC
  • Outer diameter of 25 mm
  • Through wired versions can be Daisy chained inline.
  • Optional ADVANCED package (variants)
  • Dimming in 8 steps from 0 to 100%
  • Coupling an RGB luminaire to the output socket (with through-wiring)
  • Operation at ambient temperatures up to 50° C (including protection against overheating)
SKU LEA-2100-S
Brand Redbank
