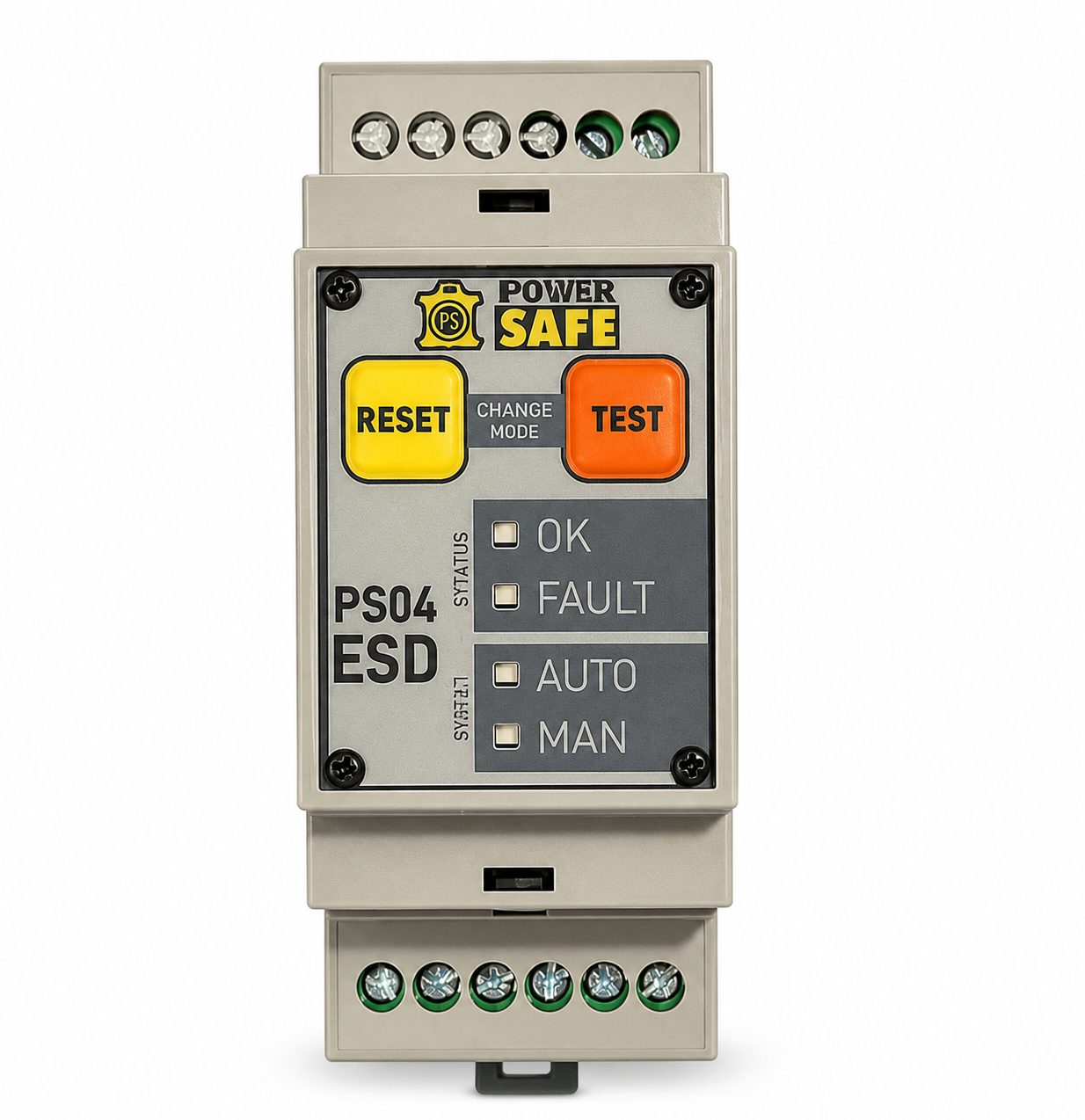

Powersafe Earth Sensing Device

The Powersafe PS04-ESD Earth Sensing Device is a safety protection unit designed for isolated power systems, including inverter generators and IT isolated power applications. Instead of relying on conventional fault current measurement, it monitors voltage potential between the connected system cabling and the sensor, typically the earth frame and bonded conductive frames. This makes it a practical safety device for portable power, generator setups, temporary power distribution, worksites, events, maintenance applications and isolated supply environments where reducing electric shock risk is critical.

• Earth fault protection for isolated power systems
• Designed for inverter generators and IT isolated power systems
• Monitors voltage potential rather than fault current
• Trips when sensor or earth frame potential rises above 36V AC or DC
• Helps disconnect supply to downstream equipment automatically
• Can still trip to isolate downstream fault paths even when a fault occurs upstream
• Suitable for portable power and isolated supply applications
• Operating voltage power supply 83-264V AC or 120-430V DC
• Maximum operating frequency power side 230V AC 2A, 460W
• 16A current rating on switching side at 250V AC
• DIN rail mounting, 2 modules wide
• Compact dimensions 36mm W x 58mm D x 90mm H approx
• Class II isolation
• 2.5mm terminal wiring connections
• Low no-load power consumption below 0.2W
• Operating temperature range -30°C to +60°C
• IP enclosure options available for portable plug and play use
• 1 year warranty
• It has a direct wired current rating of 16A so people wanting a 20A or above will need to include a contactor in the wiring circuit.
• The Powersafe ESD is an Earth Sensing Device designed to offer fault to earth protection for isolated power supplies such as UPS Systems, Inverters, and portable generators.
• This is a stand-alone device and should be installed between the power supply and the load being powered. It should also be installed after an RCBO or MCB.
