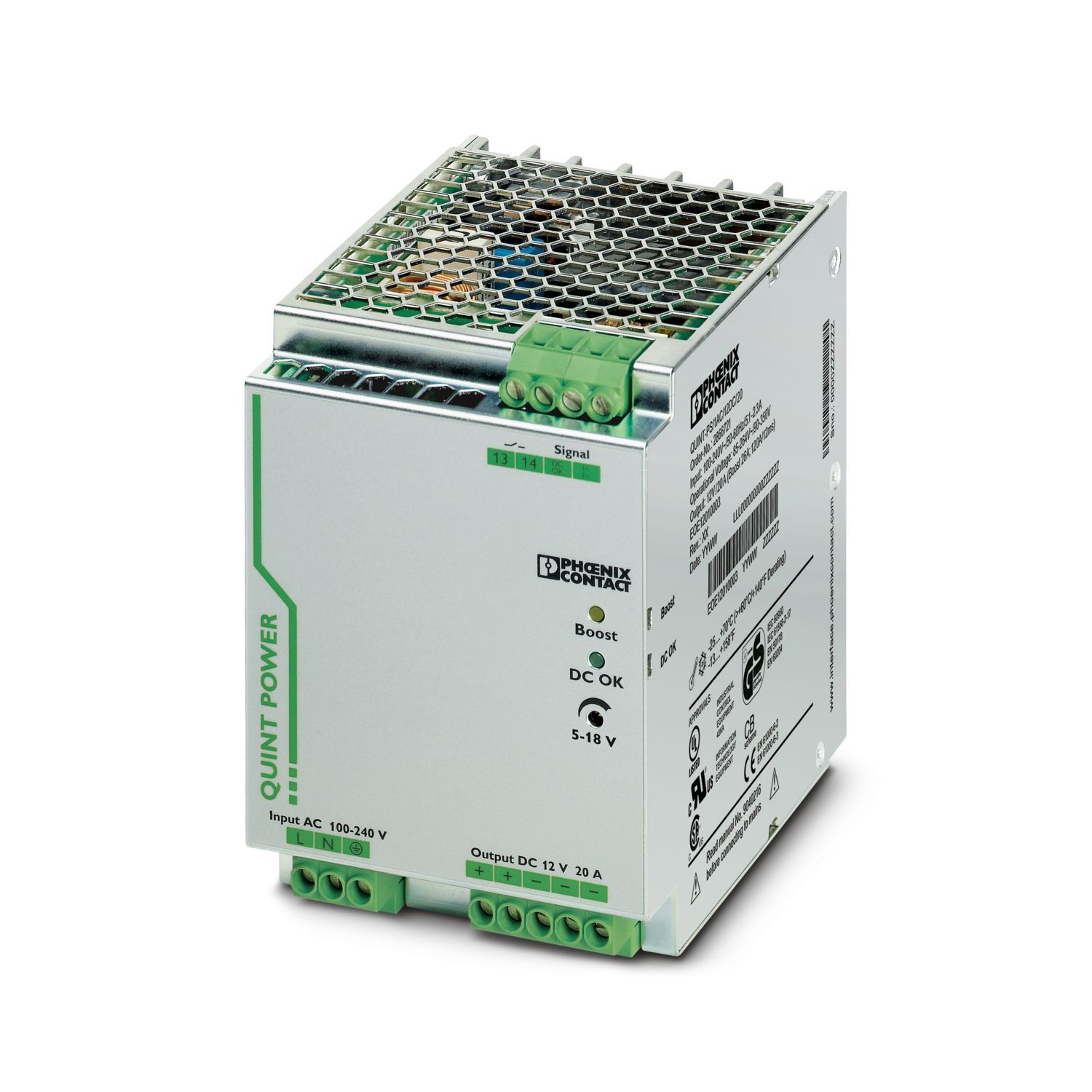

Phoenix Contact QUINT-PS/1AC/12DC/20 Power Supply 12V DC 20A DIN Rail

The Phoenix Contact 2866721 QUINT-PS/1AC/12DC/20 is a high-performance DIN rail power supply designed to deliver stable and reliable 12V DC output for industrial automation, control panels, and machinery applications. With a continuous output current of 20A and advanced SFB (Selective Fuse Breaking) technology, this unit ensures maximum system availability and reliable protection during fault conditions.

Engineered for demanding industrial environments, this QUINT POWER supply offers high efficiency above 90%, adjustable output voltage from 5V to 18V DC, and POWER BOOST capability delivering up to 26A continuously under certain conditions. It can also deliver up to 120A for short durations to ensure fast tripping of circuit breakers and maintain system reliability.

Its compact steel housing, DIN rail mounting, and wide input voltage range of 100–240V AC make it ideal for global use in industrial control systems, automation equipment, and OEM machinery.

  • 12V DC output with 20A continuous current rating
  • Adjustable output voltage range from 5V to 18V DC
  • POWER BOOST capability up to 26A continuous output
  • SFB technology delivers up to 120A for fast breaker tripping
  • Wide input voltage range 100–240V AC for global compatibility
  • High efficiency above 90% reduces power loss and heat
  • Integrated diagnostics and DC OK signalling outputs
  • DIN rail mounting for easy installation in control panels

Click here for Data Sheet



SKU 2866721
Brand Phoenix
