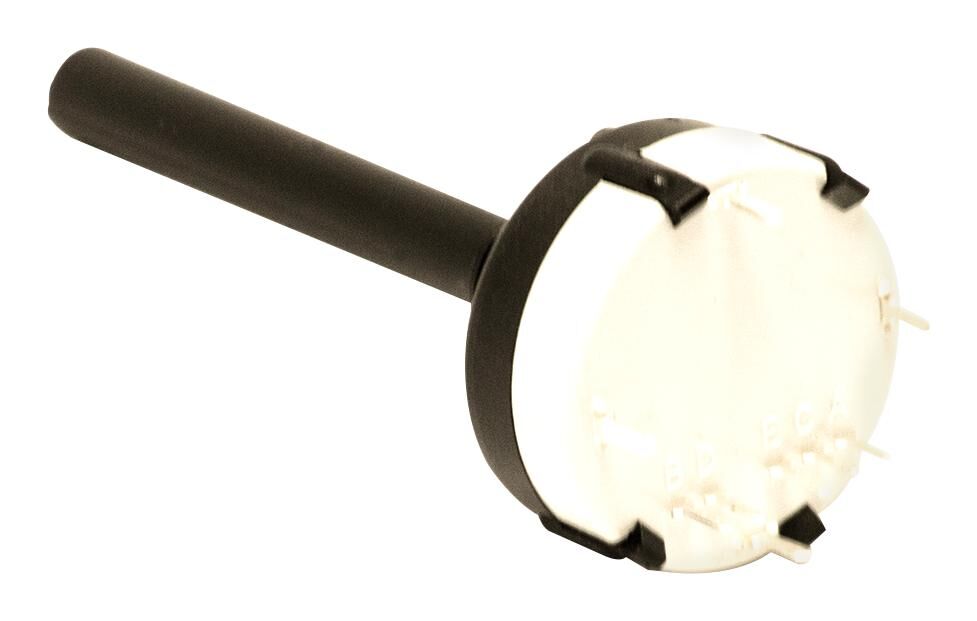

Lorlin BCK1002 Binary Coded Rotary Switch 16 Position 30.5mm

The Lorlin BCK1002 is a binary coded hexadecimal rotary switch designed for reliable signal selection in electronic and industrial control applications. Manufactured in the UK, this compact single-wafer switch provides precise rotary switching across up to 16 positions, making it ideal for control panels, instrumentation, test equipment and PCB-mounted applications.

Featuring a standard spindle with 22.5° indexing, the BCK1002 offers smooth, positive switching and consistent electrical performance. It is supplied without a location lug and includes an adjustable stop mechanism, allowing the number of active positions to be limited or set for continuous rotation as required.

With printed circuit terminals and robust polyamide construction, the Lorlin BCK1002 delivers dependable operation in demanding environments. Its compact form factor and standard 30.5mm mounting make it a versatile choice for designers and electricians requiring a high-quality rotary selector switch.

  • Binary coded hexadecimal rotary switch
  • 16 selectable positions with adjustable stop
  • Single wafer design, 27.5mm diameter
  • Standard spindle with 22.5° indexing
  • Printed circuit board terminals
  • 30.5mm panel mounting size
  • Rated 150mA at 50Vac/dc (resistive)
  • Operating temperature –30°C to +85°C
  • Long life expectancy exceeding 10,000 cycles
  • Manufactured in the UK

Click here for Data Sheet

SKU BCK1002
