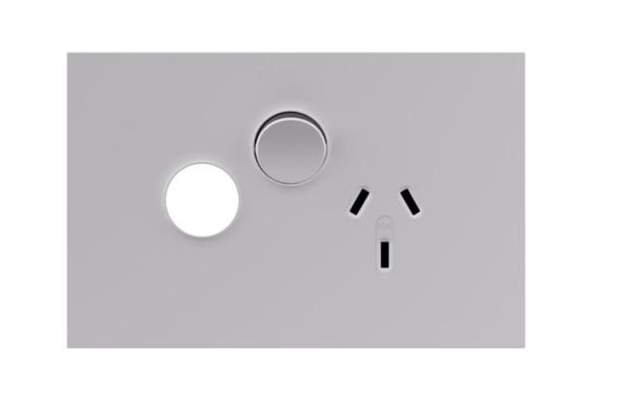

Legrand Inspyra 10A Horizontal Single Power Point with Extra Function Hole Matte White

The Legrand Inspyra NR121031 is a 10A horizontal single power point finished in matte white, featuring an extra function hole for the integration of a compatible additional device such as a USB charging or control module. Its slim 8mm profile and refined matte finish create a clean, contemporary appearance while supporting flexible and future-ready configurations.

  • Brand Legrand
  • Series Inspyra
  • 10A horizontal single power point
  • Single outlet configuration
  • Extra function hole
  • Supports compatible USB charging or control modules
  • Matte white finish
  • Horizontal mounting
  • AS/NZS 3112 Type I
  • 1 socket outlet
  • 1 switchable socket outlet
  • 10A nominal current
  • 240V nominal voltage
  • 50-60Hz frequency
  • Screwed terminal connection
  • Enhanced contact protection
  • Insulated mounting
  • 8mm slim profile
  • Plastic construction
  • Thermoplastic material
  • Matt surface finish
  • Mounting with screw
  • IP2X rated
  • IK07 impact resistance
  • 124mm wide
  • 80mm high
  • 8mm deep
  • 20mm built-in depth
  • Terminal capacity 1.5-6mm²
  • Loop through function
  • 2 loop throughs
  • Operating temperature 0-40°C
  • Storage temperature -5-50°C

Click here for Data Sheet



SKU NR121031
Brand Legrand
