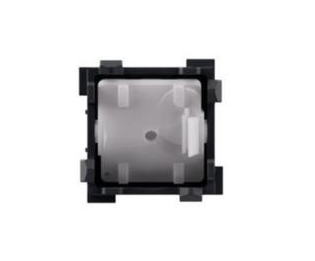

Legrand Inspyra 10A/10AX SPDT Switch Mechanism

The Legrand Inspyra NR800000 is a 10A/10AX SPDT switch mechanism designed for reliable two-way switching at 240V AC. Its compact thermoplastic body, screw terminals and snap-in fastening make it suitable for use within compatible Inspyra grid systems across residential and small commercial lighting applications.

Brand Legrand
Series Inspyra
10A/10AX SPDT switch mechanism
Two-way switch
SPDT switching
Rocker/button operation
Basic element assembly
1 rocker
240V nominal voltage
10A rated current
10AX fluorescent lamp switching current
50-60Hz frequency
AC voltage type
Screwed terminal connection
Flush-mounted installation
Snap fastening
Compatible with Inspyra grid systems
Suitable for lighting and switching applications
Suitable for residential installations
Suitable for small commercial installations
No mandatory neutral
Terminal marking indication
Terminal capacity 0.75-4mm²
Suitable for flexible cable
Plastic construction
Thermoplastic material
Grey finish
Matt surface finish
RAL colour reference similar to 7016
Optional lighting
Orientation lighting function
Non-replaceable LED lighting
IP2X rated
IK04 impact resistance
24mm wide
24mm high
32mm deep
25mm built-in depth
Minimum installation box depth 25mm
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR800000
Brand	Legrand
