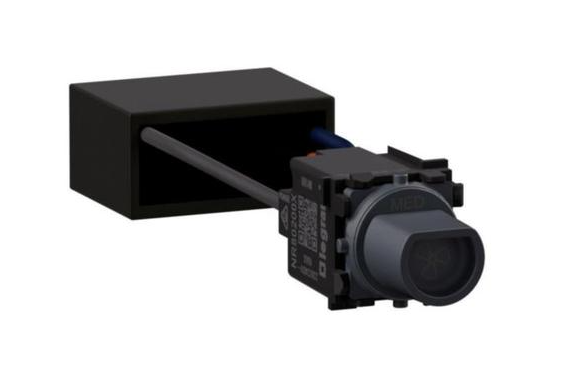

Legrand Inspyra 100VA 3-Speed Fan Controller Mechanism Grey

The Legrand Inspyra NR802003 is a 100VA 3-speed fan controller mechanism finished in grey, designed for convenient airflow adjustment within the Inspyra modular platform. It provides three selectable speed settings for compatible AC ceiling fans, with turn-button operation, screw terminals and compatibility with Inspyra grids and coverplates for a coordinated installation.

Brand Legrand
Series Inspyra
100VA 3-speed fan controller mechanism
Grey finish
3 selectable fan speed settings
Designed for compatible AC ceiling fans
100VA fan controller
Turn-button operation
Circuit 0-1-2-3 wiring system
16A rated current
240V nominal voltage
50-60Hz frequency
AC voltage type
Screwed terminal connection
4 terminals
Terminal capacity 0.75-4mm²
Suitable for flexible cable
Flush-mounted installation
Mounting with claw
Minimum installation box depth 41mm
Compatible with Inspyra grids
Compatible with Inspyra coverplates
Plastic construction
Thermoplastic material
Untreated surface
Matt surface finish
RAL colour reference similar to 7016
IP2X rated
IK04 impact resistance
22mm wide
22mm high
60mm deep
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR802003
Brand	Legrand
