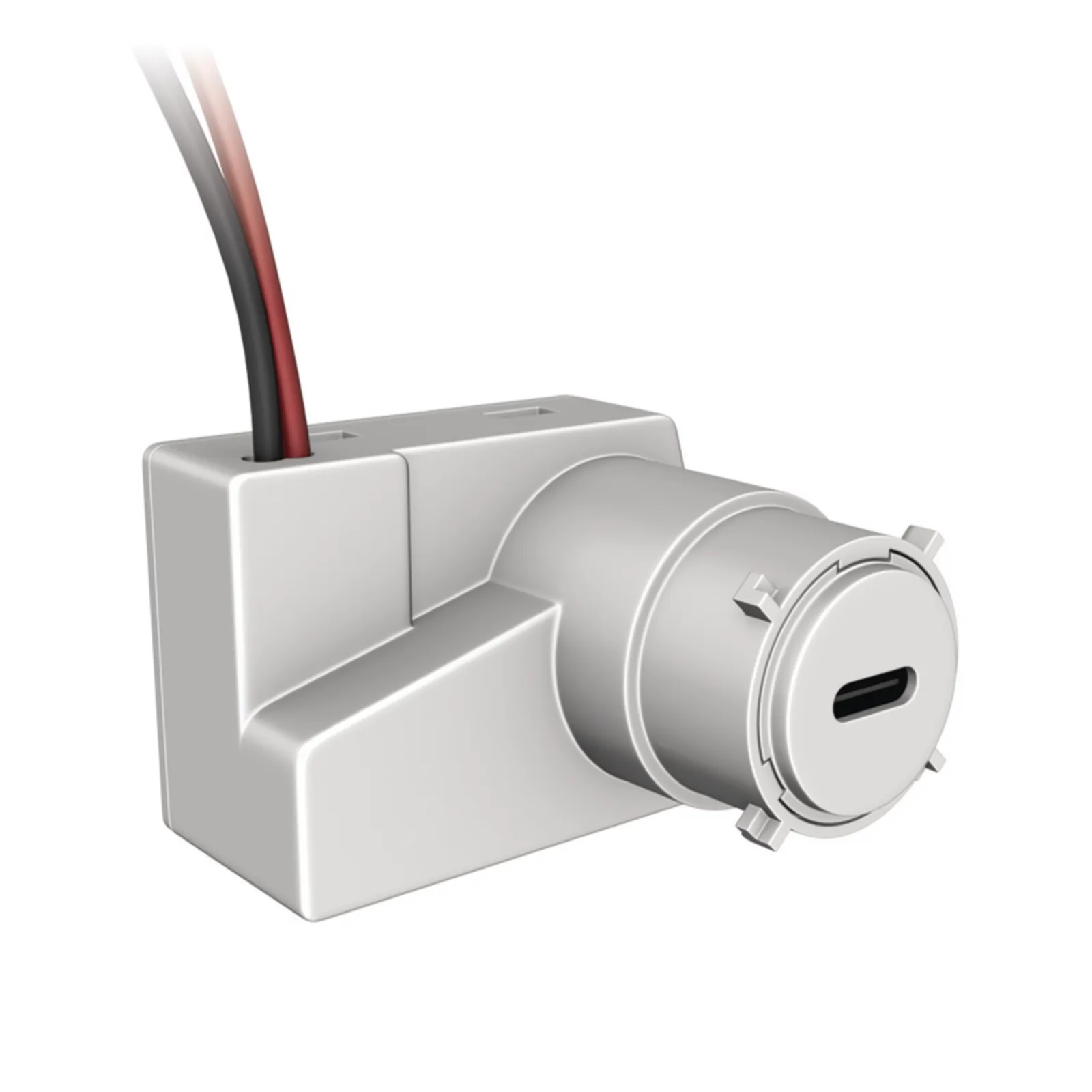

Hager Mechanism Rotoloc USB C PD 20W

The new 20-Watt USB mechanism is a single type C roto-loc® USB power delivery charger, designed to fit into any Hager double socket with extra switch position.  The compact design of the USB when fitted into the socket, enables installation into standard and fire rated wall boxes. USB power Delivery (USC PD) is a fast-charging standard that allows USB-C devices to negotiate the power need and dynamically adjust the power being delivered.  This USB mech is unique in the market being the first 20W PD USB suitable for wall box installations.

  • Type of connec­tion Wire connec­tion
  • Connect­or/plug type USB C
  • Height 32 mm
  • Width 47 mm
  • Depth 43,3 mm
  • Built-in depth 36 mm
  • Connect­or/plug type 2-wire
  • Number of outputs 1
  • Has labelling field No
  • With mini­ature fuse No
  • Colour White
  • RAL code 9010
  • Surface finish Glossy, Matt
  • Material Polycar­bonate (PC)
  • Output power 20 W
  • Power consump­tion standby .05 W
  • Rated current 0,35 A
  • Output current 3000 mA
  • Fuse With elec­tronic short-­cir­cuit and over­load protec­tion
  • Type of connec­tion Others
  • Protec­tion Auto­matic reset­ting of over­load and over­heating protec­tion

Click here for Data Sheet





SKU WBMUSBCPD
Brand Hager
