Atom Series III LED Backlit Panel 300 x 600 Tri-CCT 14W
SKU code: 17976
Need Advice?
Get in touch with our product experts.

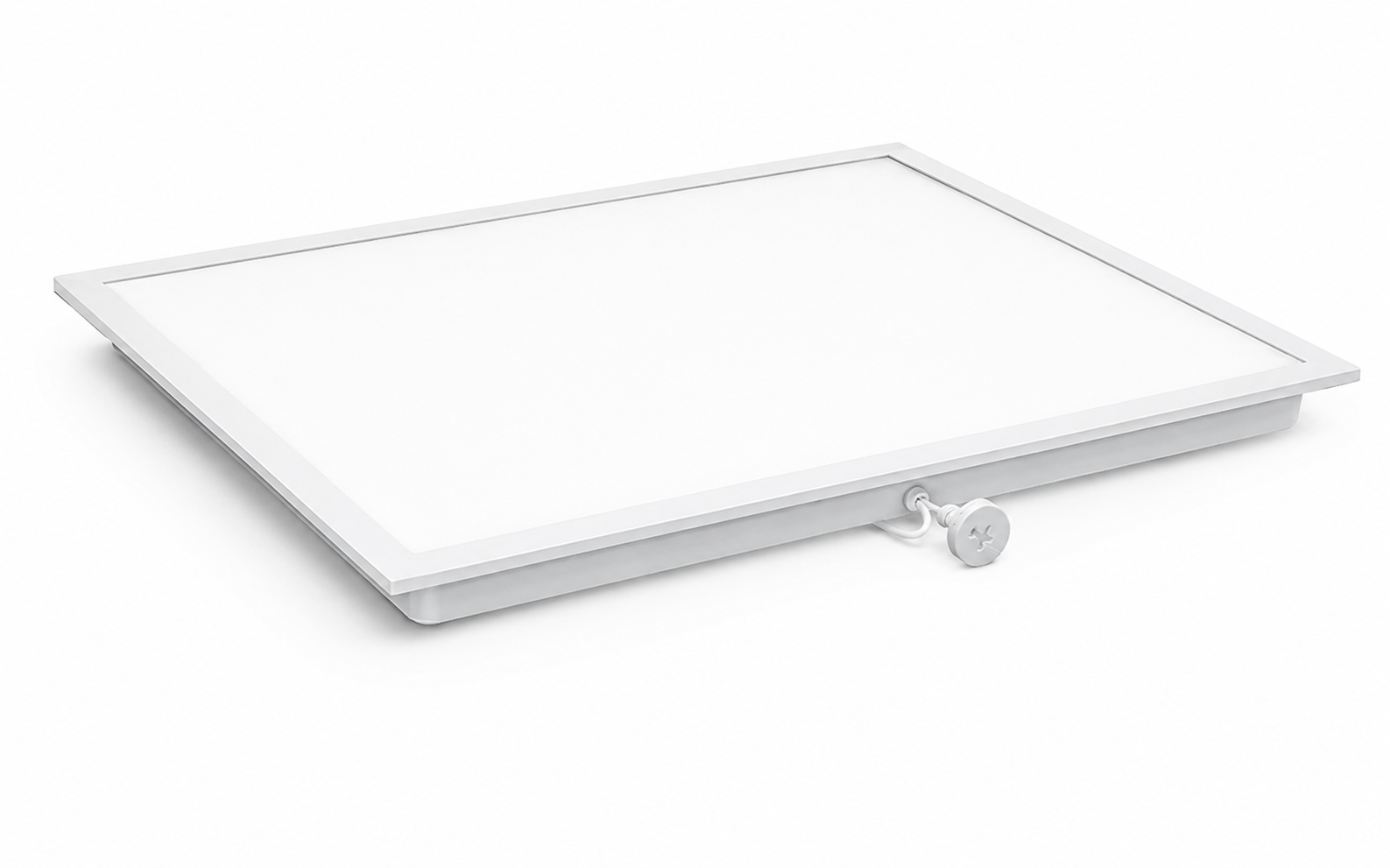

Atom Series III LED Backlit Panel 300 x 600 Tri-CCT 14W
The Atom AT6023/306/TRI Series III is a high efficacy LED backlit panel designed for recessed installation in commercial and residential applications where a slim, efficient and versatile panel light is required. This 300 x 600 model features Tri-CCT selection, giving installers the flexibility to choose between warm white, cool white and daylight colour temperatures to suit the space. It also includes an LED driver and easy-to-install flex and plug for straightforward setup. This model is rated at 14W and delivers up to 2050 lumens with a total system efficiency of 146lm/W. The datasheet lists a white powdercoated aluminium body with polystyrene diffuser, recessed installation, fixed output driver, 900mm re-wireable 2 pin flex and plug, CRI above 80, UGR below 22 and IP54 protection to the front face only. It is also IC-4 rated, operates on 230Vac, and is suitable for working temperatures from -10°C to 40°C. Product dimensions are 595mm long, 295mm wide and 32mm high.
- 300 x 600 panel size
- 14W power
- Tri-CCT selectable
- 3000K warm white
- 4000K cool white
- 5700K daylight
- Lumen output 1950lm at 3000K
- Lumen output 2050lm at 4000K
- Lumen output 1950lm at 5700K
- Total system efficiency 146lm/W
- CRI greater than 80
- UGR less than 22
- 3-step MacAdam ellipse
- White powdercoated finish
- Aluminium AL6063 body
- Polystyrene diffuser
- Recessed installation
- Fixed output driver
- LED driver included
- Easy-to-install flex and plug
- 900mm re-wireable 2 pin flex and plug
- Non-dimmable as standard
- Can be upgraded with DALI-2 dimmable driver
- Power factor 0.9
- Input voltage 230Vac
- Input current 0.13A
- Input frequency 50Hz
- Lamp voltage 36V
- Lamp current 350mA
- IP54 front face only
- IC-4 rated
- Working temperature -10°C to 40°C
- Product height 32mm
- Product length 595mm
- Product width 295mm
- Product design life 10 years
- Daily use 12 hours
- Domestic use warranty 3 years RTB
- VIP warranty 2 years onsite plus 3 years RTB total 5 years
- Warranty operating hours 20000 hours
| SKU | 17976 |
| Brand | Atom |
