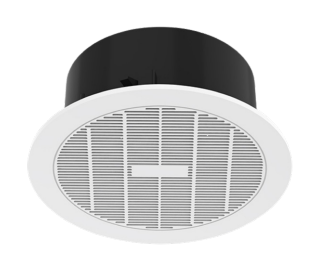

Atom Proton 200MM 25W High Velocity Axial Exhaust Fan White

The Atom Proton 16765 is a 200mm high velocity axial exhaust fan designed for strong ceiling ventilation in bathrooms, ensuites, laundries and other residential areas. Its 25W ball bearing motor delivers up to 500m³/h of air extraction, while the integrated draught stopper helps reduce unwanted airflow when the fan is not operating. Supplied with a 900mm flex and plug, it is designed for straightforward recessed installation.

Brand Atom
Series Proton
200mm axial exhaust fan
25W motor
Ball bearing motor
Axial fan
500m³/h air extraction
34dB noise level
230Vac input
50Hz input frequency
IP20 rated
White finish
Gloss finish
Recessed installation
Built-in draught stopper
900mm flex and plug
3-pin re-wireable flex and plug
10-year product design life
3-year domestic return-to-base warranty
290mm overall length
290mm overall width
128mm height
240mm cutout
215mm minimum ceiling depth
Suitable for bathrooms
Suitable for ensuites
Suitable for laundries

Click here for Data Sheet

SKU	16765
Brand	Atom

Be The First To Review This Product!
