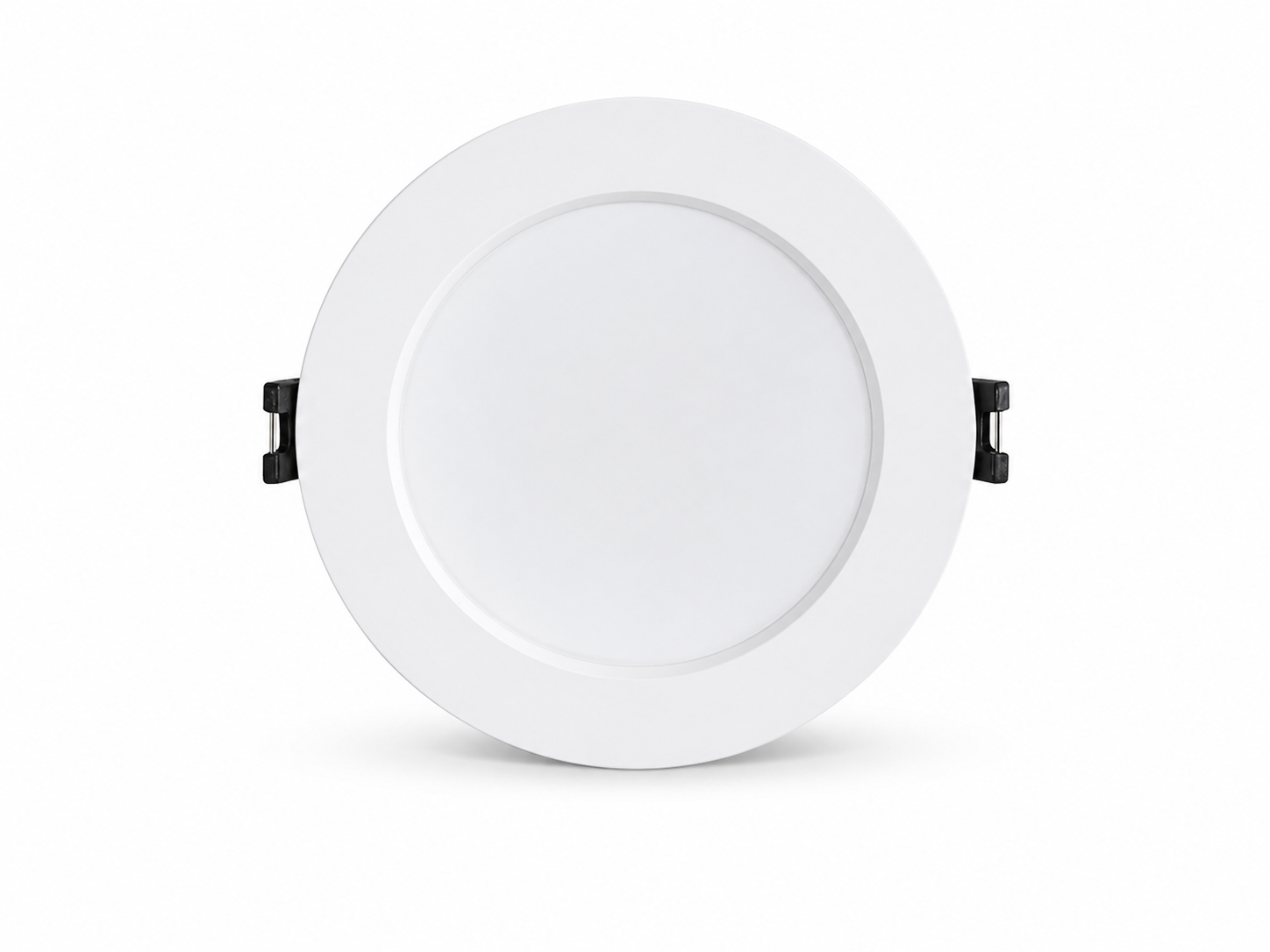

Atom 8W LED Downlight Tri-CCT White Recessed

The Atom AT9039/WH/TRI is a sleek recessed LED downlight designed for residential, retail, showroom and decorative applications. Supplied under order code 14536, this 8W fitting features a seamless recessed lens look, integrated dimmable driver and Tri-CCT functionality, giving installers and homeowners added flexibility to suit different spaces and lighting preferences. Its fixed white matt finish and clean profile make it a practical option for modern interiors. Built for Australian conditions, the AT9039/WH/TRI is IC-4 rated and features an IP44 front face rating, making it suitable for covered ceiling installations where insulation contact safety is important. It operates on 230Vac, supports phase cut dimming, and offers a 90 degree beam angle with a CRI above 80. The fitting provides selectable colour temperatures of 3000K, 4000K and 5700K, with light outputs of 750lm, 870lm and 840lm respectively. The datasheet also lists a 90mm cutout, 115mm diameter and 60mm height, along with a reported LED lifetime of 60,000 hours and a domestic use warranty of 3 years RTB.

  • 8W LED downlight
  • White recessed lens design
  • Matt white finish
  • Built in dimmable driver
  • Integrated driver included
  • Phase cut dimmable
  • Tri-CCT selectable
  • 3000K warm white
  • 4000K cool white
  • 5700K daylight
  • 750lm at 3000K
  • 870lm at 4000K
  • 840lm at 5700K
  • 90 degree beam angle
  • CRI greater than 80
  • IP44 front face rating
  • IC-4 rated
  • Fixed fitting
  • Plastic body
  • Recessed installation
  • 230Vac input voltage
  • 50Hz input frequency
  • Inline switch type
  • Working temperature range 0 to 40°C
  • System efficiency 105lm/W
  • LED lifetime 60,000 hours
  • LED lifetime rating L70B10
  • Product height 60mm
  • Product diameter 115mm
  • Cutout 90mm
  • Non rewireable flex and plug
  • Suitable for residential retail showroom and decorative applications
  • Domestic use warranty 3 years RTB

Click here for Data Sheet

SKU AT9039WHRTRI
