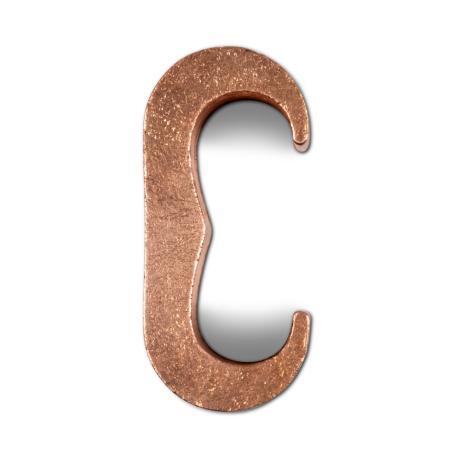

Alco Wide Jaw C-Connector 95 to 120mm² Copper Connector

The Alco ALCCW120 Wide Jaw C-Connector is designed for joining, tapping and bonding copper conductors where a wide jaw profile is needed for larger conductor connections. Suitable for 95 to 120mm² copper conductors, it is ideal for earthing systems, switchboards, utilities, electrical infrastructure, industrial installations and direct burial applications where a strong, conductive and compliant copper connection is required. Made from high-purity copper, this wide jaw C-connector provides a reliable solution for contractors and installers working across commercial and industrial electrical projects.

  • Suitable for joining and tapping copper conductors
  • Suitable for bonding earthing conductors
  • Made from high-purity copper
  • Suitable for direct burial applications
  • Compatible with Alco, Cabac and Burndy C-Connector Dies 12t
  • Complies to IEEE837 CL8
  • Copper conductive material 99.95%
  • Conductivity 99.7% IACS
  • Tensile strength approximately 200 MPa

Click here for Data Sheet

SKU ALCCW120
Brand Alco
