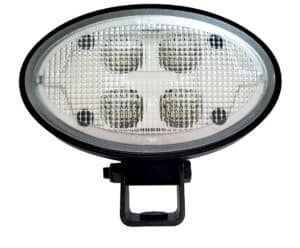

ABL OHD 5000 Oval LED Heavy-Duty Work Light Long Range

The ABL OHD5000LR is a powerful oval heavy-duty LED work light designed for machinery, vehicles and industrial equipment that need strong long distance visibility in harsh operating conditions. Delivering 5000 effective lumens with a long range beam pattern, it is ideal for mining equipment, civil and construction machinery, agricultural vehicles, forestry equipment, OEM applications and heavy-duty mobile plant. Its rugged oval design, aluminium housing with integrated heat sink, polycarbonate lens and pedestal mount make it a durable lighting solution for demanding worksites where vibration, shock, water, dust and heat resistance are essential.

  • Oval heavy-duty LED work light with long range beam pattern
  • 5000 effective lumens for strong forward visibility
  • 48W output with 2A current draw at 24V DC
  • Multi-volt 12-24V DC operation
  • 6000K colour temperature
  • Aluminium housing with integrated heat sink for reliable thermal management
  • Polycarbonate lens for tough industrial and machinery use
  • IP68 and IP69K rated for dust, water and high-pressure washdown protection
  • 15Grms vibration resistance from 24-2000Hz with 60G shock rating
  • Meets CISPR 25 Class 5 standards
  • EMC rated to ISO 13766, ISO 14982, ISO 12985 and CISPR25 Class 5
  • Reverse voltage polarity protection with surge protection
  • DT 2 pin connector
  • Pedestal mounting

Click here for Data Sheet

SKU ABLOHD5000LR
Brand ABL
